| Place of Origin: | China |
|---|---|
| Brand Name: | Kaishin |
| Certification: | SGS |
| Model Number: | FD01 |
| Minimum Order Quantity: | 50 Square Meters |
| Price: | USD 300-400 per square meters FOB Shenzhen |
| Packaging Details: | Standard Pakcing |
| Delivery Time: | 50 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 Square Meters per 50 days |
| Application: | Floating Pontoon | Material: | 6061-T6 Aluminium Alloy |
|---|---|---|---|
| Accessories: | Bolts, Screws, Bearings | Life Span: | 20-50 Years |
| Load Capacity: | 300kg/square Meters | Freeboard: | 300mm-600mm |
| High Light: | Jetty Marina Aluminum Floating Dock,6061 T6 Aluminum Floating Dock,600mm floating pontoon dock |
||

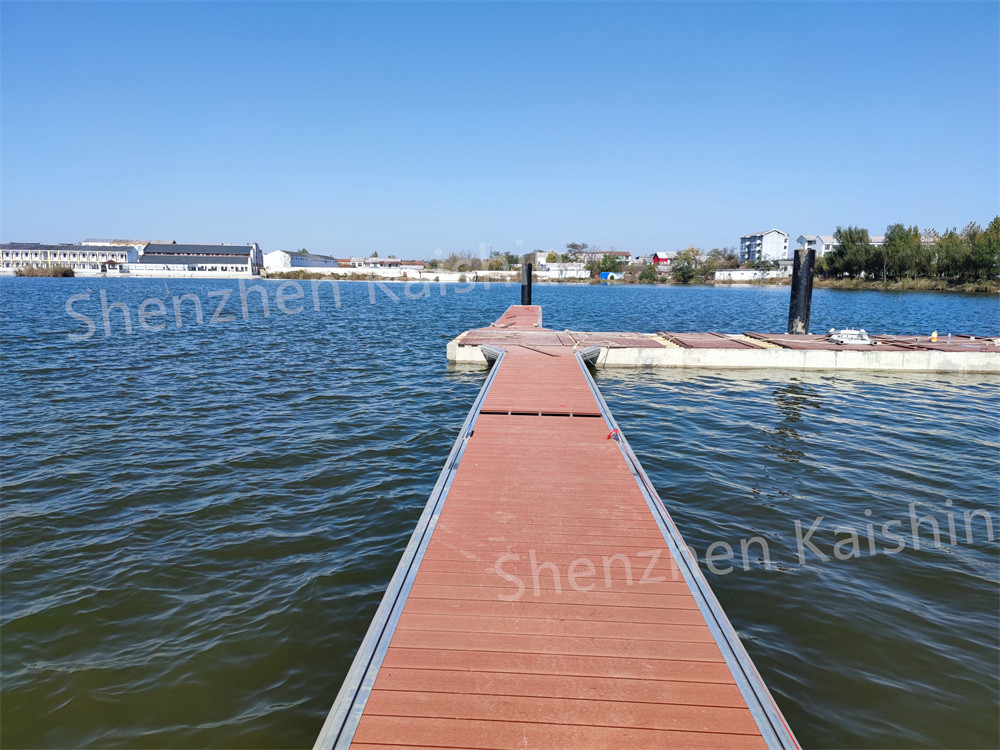

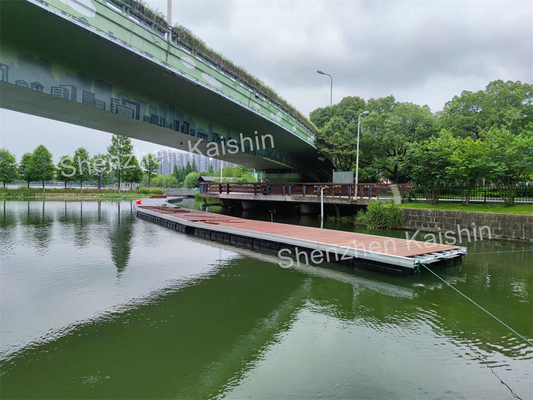

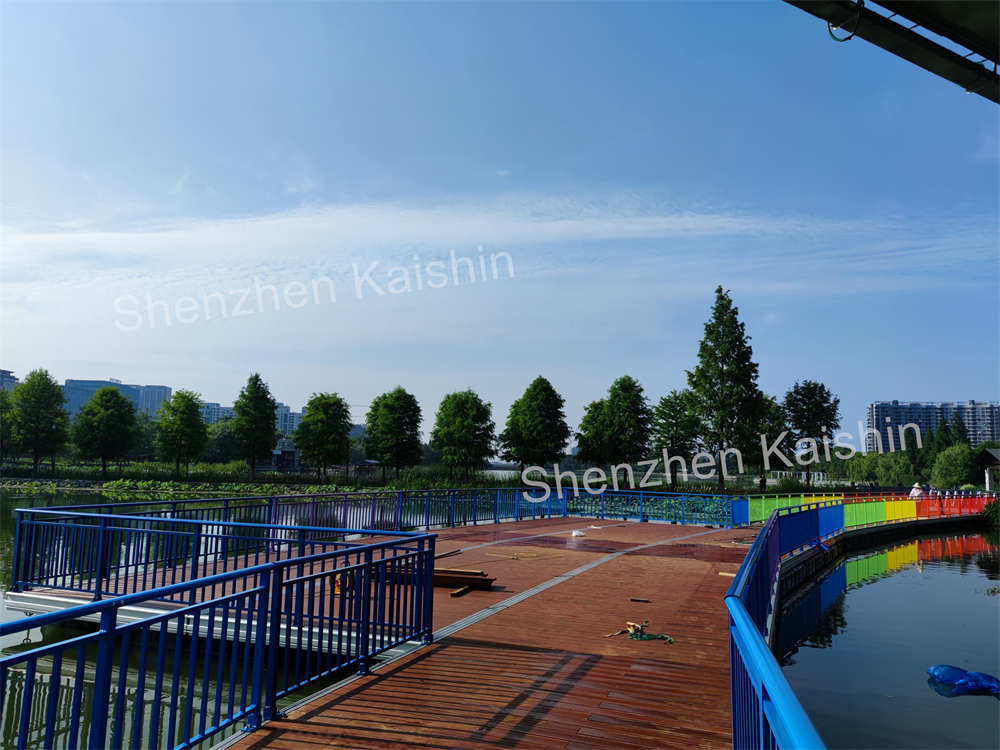

What is a floating dock?
A floating dock is just what it says. A floating dock is not fixed at a certain height or level. This dock type has several advantages over a fixed dock. Whatever your reason, floating dock systems are the smart choice. They're safer, easier to install and remove, and will last longer than traditional docks. Floating docks save you time and money. Not to mention they’ll keep you and your property safe during unexpected situations.
Generally speaking, a floating dock system consists of a gangway (ramp), walkway, finger, decking, pile, pontoon, and other dock accessories.
| Freeboard | 300mm-600mm | Mainly depends on the weight & load & structure design. Being controllable. |
| Lifespan | 20-50 years | Should be maintained periodically. |
| Floating dock specifications (The main part) | ||
| Items | Details | Remarks |
| Frame | Aluminum Alloy | Anti-corrosion; Durable; Strong yield strength; Lightweight; Easy to install |
| Pontoon Box | HDPE & EPS Foam |
Durable; Anti-corrosion; Anti-UV; Low-temperature toughness; Light to transport; Easy to maintenance & install; |
| Decking panel | Wood Plastic Composite (WPC) |
Various colors & sizes; Corrosion resistant; Mothproof; Low water absorption; Anti-UV; Easy to maintenance |
| Floating dock specifications (The accessories part) | ||
| Items | Details | Remarks |
| Gangway/ Ramp |
Aluminum Alloy Frame, Handrail, Decking |
Strong loading capability; Safe and stable; UV resistant; Long life span; Low maintenance cost; Flexible movement (with rollers, can adjust according to water level) |
| Mooring Cleat | Stainless Steel / Aluminium cast | 2.5T-10T; Durable; Corrosion resistance and sturdy in the saltwater environment |
| Pile Cap | LLDPE Cone | UV Resistant; High-Stress Crack Resistance; Maintenance Free; Seamless Design |
| Pile Guide | AISI-316 Nylon roller / Block |
Easy operation and maintenance; Durable |
| Rubber Fender | D-shape Extrusion compound |
Strong – No pull through; Protects – Shock Absorbing; Looks Great – No fading; Easy Install – Nail or screw; Economical – Saves Money |
| Water and Power Pedestal |
Supply electrical & water, Aluminum material case |
Supply electrical & water; Voltage 220V; 16A/32A/ 63A;2x 1/2 Water Tap; LED Lightning |
| Fire Pedestal |
Stainless steel case, Fire extinguisher, Lifebuoy |
Compact design; Tempered Safety Glass; Longer life in outdoor applications; Sturdy surface resists chipping, peeling, and flaking |
| Corner Bumper | Rubber / PVC |
Tough and tear-resistant; Provides maximum cushion; Protection for docks & hulls; Easily installation; WILL NOT mark or mar your hull |
| Other accessories | Bolts&Screws,Rivet,Rubber Pad,etc. | All connection or fixing fittings for each part are well designed and durable, especially for the marine environment. |
>>>ACCESSORIES
>>>OUR FACTORY
Shenzhen Kaishin Marine Accessories Co., Ltd, established in 2019, is a professional engaged in the sale and service of floating docks and dock accessories.
Our product line covers the marine industry chain, from floating pontoons to accessories, like a walkway, finger, gangway, pile cap, decking, fender, mooring cleat, power pedestal, dock float, etc.
>>>QUALITY CONTROL
>>>FAQ
| No. | FAQ | Answers |
| 1 | How do I get an estimate? How do we get started? | Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with the quotation. |
| 2 | How long does it take to manufacture a full set of the floating dock? | All purchases of the floating dock project are built to order, please contact us to check with our sales representative for the current lead time. |
| 3 | Is the installation included with the purchase of a floating dock project? | No. Installation is not included. However, installation instructions can be provided. |
| 4 | How do I know what type of installation is best for me, on my property? | Every situation on every property is slightly different. We can provide a consultation to review your needs according to your local conditions. We would assist you in planning your floating dock project and customizing your dock with a great selection of dock accessories. |
| 5 | Can my floating docks be customized to a different size or configuration? | Sure! Since all of our floating docks are built to order, they can be customized to fit your needs. |
| 6 | What dock systems do we build? | We offer floating dock systems in concrete and aluminum. We also have different series of dock accessories. |
