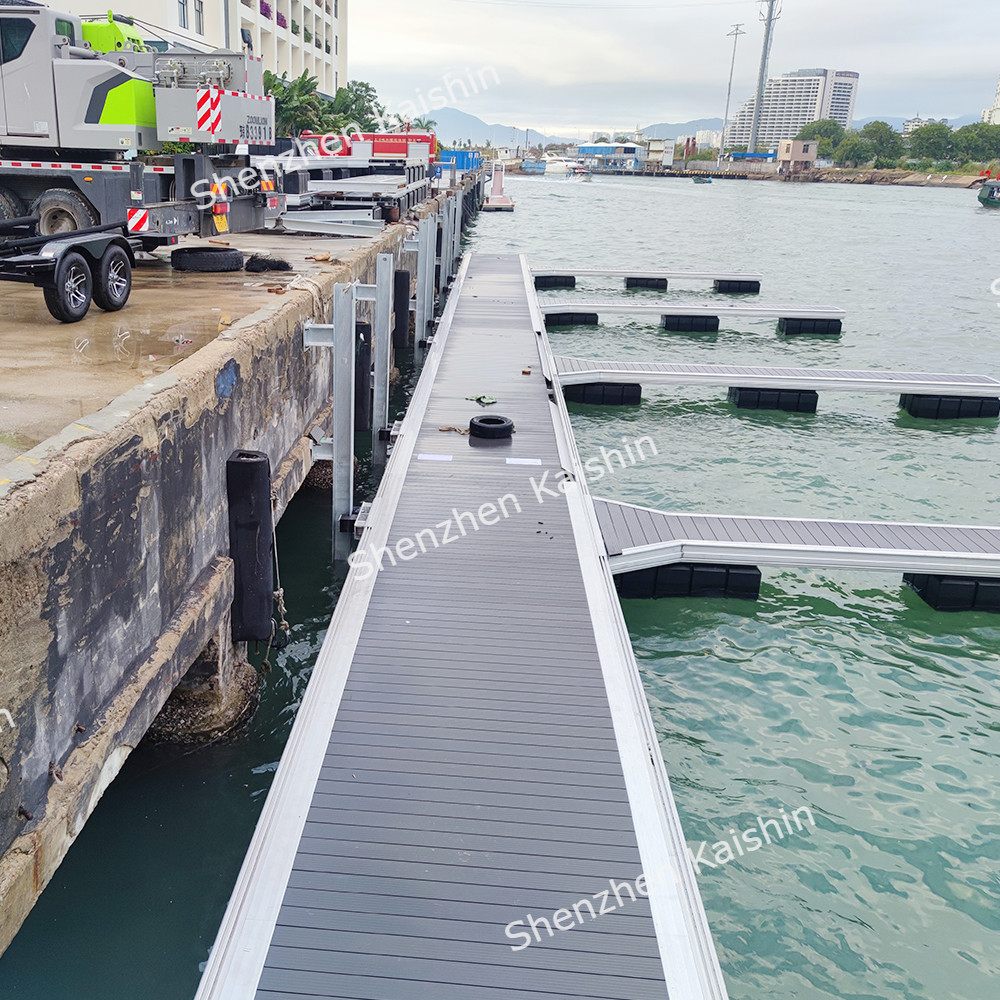

Marine Aluminum Floating Dock WPC Decking Finger Dock Pontoon Pier

Basic Information
Place of Origin: Guangdong, China
Brand Name: Kaishin
Model Number: KS6001
Minimum Order Quantity: 5 square meter
Price: USD200-USD500 per square meter
Packaging Details: As required
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 4000 square meter per month
Material: Marine Floating Dock Decking: Wood Plastic Composite Or Exotic Precious Wood
Fender: Rubber Fender Floats: HDPE+EPS Foam
Type: According To Your Requirement, Thickness: 0.2mm~15mm Or Customized
Flooring Accessories Type: Pedestal Technics: Wood-Plastic Composite Flooring,Laminate Flooring,PE Materials Flooring
Product Name: A Floating/ Floating Dock/ Marine Floating Dock Range Of Application: Sea, Lake
Freeboard: 500mm Size: CUSTOM MADE TO ORDER
High Light:

Aluminum Floating Dock 15mm

,

Finger Aluminum Floating Dock

,

WPC Decking Finger Dock

marine floating dock or aluminum marine dock floating bridge pontoon

All our floating docks are custom-made, according to project requirements, and can have variable load and float ranges according to the specific need. The floating docks can be fitted with electrical or water systems and all accessories for the end users.

Every floating dock we make is custom-made to meet the specific needs of each project, and it can be designed to handle a wide range of loads and float levels depending on the project's needs. In addition to electrical and water systems, all dock accessories can be installed.

It is necessary to design, engineer, and fabricate each floating dock to meet the specific requirements of the site. The aluminum floating docks we manufacture can be made in any shape or height, making sure each one meets the exact functional requirements of its installation.
Specification

Freeboard 300mm-600mm Mainly depends on the weight & load & structure design. Being controllable.
Lifespan 20-50 years Should be maintained periodically.
Floating dock specifications (The main part)
Items Details Remarks
Frame Aluminum Alloy Anti-corrosion; Durable; Strong yield strength; Lightweight; Easy to install
Pontoon Box HDPE & EPS Foam

Durable; Anti-corrosion; Anti-UV; Low-temperature toughness;

Light to transport; Easy to maintain & install;

Decking panel Wood Plastic Composite (WPC)

Various colors & sizes; Corrosion resistant; Mothproof;

Low water absorption; Anti-UV; Easy to maintenance

Floating dock specifications (The accessories part)
Items Details Remarks
Gangway/ Ramp

Aluminum Alloy Frame,

Handrail, Decking

Strong loading capability; Safe and stable; UV resistant; Long life span;

Low maintenance cost; Flexible movement (with rollers, can adjust according to water level)

Mooring Cleat Stainless Steel / Aluminium cast 2.5T-10T; Durable; Corrosion resistant and sturdy in the saltwater environment
Pile Cap LLDPE Cone UV Resistant; High-Stress Crack Resistance; Maintenance Free; Seamless Design
Pile Guide AISI-316
Nylon roller / Block
Easy operation and maintenance; Durable
Rubber Fender D-shape
Extrusion compound

Strong – No pull through; Protects – Shock Absorbing; Looks Great – No fading;

Easy Install – Nail or screw; Economical – Saves Money

Water and Power Pedestal

Supply electrical & water,

Aluminum material case

Supply electrical & water; Voltage 220V; 16A/32A/ 63A;2x 1/2 Water Tap; LED Lightning
Fire Pedestal

Stainless steel case,

Fire extinguisher, Lifebuoy

Compact design; Tempered Safety Glass; Longer life in outdoor applications;

Sturdy surface resists chipping, peeling, and flaking

Corner Bumper Rubber / PVC

Tough and tear-resistant; Provides maximum cushion; Protection for docks & hulls;

Easily install; WILL NOT mark or mar your hull

Other accessories Bolts&Screws,Rivet,Rubber Pad,etc. All connection or fixing fittings for each part are well-designed and durable, especially for the marine environment.

>>>COLLECT INFORMATION

1. Do you have the sketch plan of your project? If you have it, please send it to us.
2. What kind of usage is for your project?
Residential, Commerce/industrial, Marina, Pleasure, Aquaculture, Rowing, Event, Special project, Renting, Other.
3. Do you need a Jetslide system?
4. Can we have the photos of the installation site? We need to know the shore around the type and environment.
5. It Will be installed on:
A lake, A river without current, A weak current river, A medium current river, A strong current river, A sea, An ocean
6. Sea bottom type: Sand, Pebbles, Mud, Rocks
7. Usual height of waves?
8. Do you have ice formation during winter?
9. Are you in a tidal area? And what is the tidal range?
10. What is the water depth at the beginning and end of the dock?
The information above is very important to us, please kindly write the answer to us so that we can customize your project.

>>>FAQ

1. How do I get an estimate? How do we get started?

Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with a quotation.

2. How long does it take to manufacture a full set of floating docks?

All purchases of floating dock projects are built to order, please contact us to check with our sales representative for the current lead time.

3. Is the installation included with the purchase of a floating dock project?

No. Installation is not included. However, installation instructions can be provided.

4. How do I know what type of installation is best for me, on my property?

Every situation on every property is slightly different. We can provide a consultation to review your needs according to your local conditions. We would assist you in planning your floating dock project and customizing your dock with a great selection of dock accessories.

Marine Aluminum Floating Dock WPC Decking Finger Dock Pontoon Pier 0

>>>ADVANTAGE

Marine Aluminum Floating Dock WPC Decking Finger Dock Pontoon Pier 1
