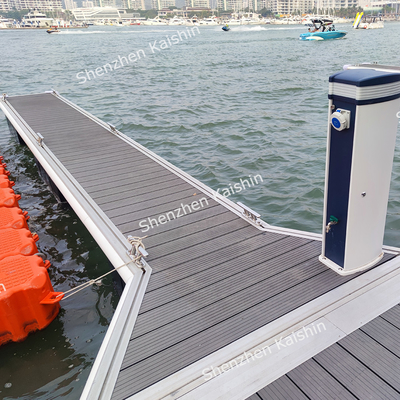

Aluminum Alloy Floating Dock Design Marine Grade Yacht Berth Marina Gangway

Basic Information
Place of Origin: Guangdong, China
Brand Name: Kaishin
Model Number: KS600, KS900,KS1000,KS1200
Minimum Order Quantity: 1square meter
Price: USD200-USD500 per square meter
Packaging Details: As required
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 4000 square meter per month
Material: Marine Grade Aluminium 6061 T6 Range Of Application: Sea, Lake
Size: Customized Freeboard: 500mm
Decking: Wood Plastic Composite Or Exotic Precious Wood Fender: Rubber Fender
Cleat: Aluminium Or Stainless Steel Floats: HDPE+EPS Foam
Type: According To Your Requirement Thickness: 0.2mm~15mm Or Customized
Color: Customized Flooring Accessories Type: Pedestal
Size: CUSTOM MADE TO ORDER Product Name: Embarcadero De Aluminio Pantalanes Flotantes De Aluminio Aluminio Puente Pier Em Aluminio
High Light:

berth Floating Dock Design

,

Aluminum Alloy Floating Dock Design

,

Yacht berth Marina Gangway

Aluminum Alloy Floating Dock Marine Yacht Marina Gangway Ladder Yacht Pontoon Lift Dock

A floating dock is just what it says. A floating dock is not fixed at a certain height or level. This dock type has several advantages over a fixed dock. Whatever your reason, floating dock systems are the smart choice.

The era of massive and cumbersome wooden and cement docks is thing of the past. The aluminum alloy structure has a strong versatility as it is suitable for rivers, lakes, and seas. A new alternative to a bridge or walkway for transitioning over wetlands and small bodies of water. It's widely applied to various floating structures like marinas, private berths, and lakeside floating bridges.

This frame is constructed primarily from marine grade aluminum 6061-T6, which is welded together to form a solid supporting frame, which is complete with electrically isolated aluminum beams. The floors are made of exotic precious wood or WPC (Wood Plastic Composite).

Specification

Freeboard 300mm-600mm Mainly depends on the weight & load & structure design. Being controllable.
Lifespan 20-50 years Should be maintained periodically.
Floating dock specifications (The main part)
Items Details Remarks
Frame Aluminum Alloy Anti-corrosion; Durable; Strong yield strength; Lightweight; Easy to install
Pontoon Box HDPE & EPS Foam

Durable; Anti-corrosion; Anti-UV; Low-temperature toughness;

Light to transport; Easy to maintain & install;

Decking panel Wood Plastic Composite (WPC)

Various colors & sizes; Corrosion resistant; Mothproof;

Low water absorption; Anti-UV; Easy to maintenance

Floating dock specifications (The accessories part)
Items Details Remarks
Gangway/ Ramp

Aluminum Alloy Frame,

Handrail, Decking

Strong loading capability; Safe and stable; UV resistant; Long life span;

Low maintenance cost; Flexible movement (with rollers, can adjust according to water level)

Mooring Cleat Stainless Steel / Aluminium cast 2.5T-10T; Durable; Corrosion resistant and sturdy in the saltwater environment
Pile Cap LLDPE Cone UV Resistant; High-Stress Crack Resistance; Maintenance Free; Seamless Design
Pile Guide AISI-316
Nylon roller / Block
Easy operation and maintenance; Durable
Rubber Fender D-shape
Extrusion compound

Strong – No pull through; Protects – Shock Absorbing; Looks Great – No fading;

Easy Install – Nail or screw; Economical – Saves Money

Water and Power Pedestal

Supply electrical & water,

Aluminum material case

Supply electrical & water; Voltage 220V; 16A/32A/ 63A;2x 1/2 Water Tap; LED Lightning
Fire Pedestal

Stainless steel case,

Fire extinguisher, Lifebuoy

Compact design; Tempered Safety Glass; Longer life in outdoor applications;

Sturdy surface resists chipping, peeling, and flaking

Corner Bumper Rubber / PVC

Tough and tear-resistant; Provides maximum cushion; Protection for docks & hulls;

Easily install; WILL NOT mark or mar your hull

Other accessories Bolts&Screws,Rivet,Rubber Pad,etc. All connection or fixing fittings for each part are well-designed and durable, especially for the marine environment.

>>>ADVANTAGE

The dock products and accessories we produce are competitively priced and are suited for dock builders, marinas, yacht clubs, retailers, as well as individuals.

Shenzhen Kaishin provides all your floating dock needs, whether you are looking for a commercial floating dock system or a private berth, with years of experience and know-how.

Aluminum Alloy Floating Dock Design Marine Grade Yacht Berth Marina Gangway 0
Aluminum Alloy Floating Dock Design Marine Grade Yacht Berth Marina Gangway 1

Aluminum Alloy Floating Dock Design Marine Grade Yacht Berth Marina Gangway 2

Aluminum Alloy Floating Dock Design Marine Grade Yacht Berth Marina Gangway 3

No. FAQ Answers
1 How do I get an estimate? How do we get started? Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with a quotation.
2 How long does it take to manufacture a full set of the floating dock? All purchases of the floating dock project are built to order, please contact us to check with our sales representative for the current lead time.
3 Is the installation included with the purchase of a floating dock project? No. Installation is not included. However, installation instructions can be provided.
4 How do I know what type of installation is best for me, on my property? Every situation on every property is slightly different. We can provide a consultation to review your needs according to your local conditions.
If you decide to purchase a dock from us, the consulting fee will be waived and we can design a dock and land assembly plan tailored particularly for your specific property and waterfront.
