Aluminum Alloy Floating Dock Design Marine Yacht Berth Floating Pontoon Dock

Basic Information
Place of Origin: Guangdong, China
Brand Name: Kaishin
Model Number: KS600, KS900,KS1000,KS1200
Minimum Order Quantity: 1square meter
Price: USD200-USD500 per square meter
Packaging Details: As required
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 4000 square meter per month
Material: Marine Grade Aluminium 6061 T6 Range Of Application: Sea, Lake
Freeboard: 500mm Decking: Wood Plastic Composite Or Exotic Precious Wood
Fender: Rubber Fender Cleat: Aluminium Or Stainless Steel
Floats: HDPE+EPS Foam Type: According To Your Requirement
Thickness: 0.2mm~15mm Or Customized Product Name: Embarcadero De Aluminio Pantalanes Flotantes De Aluminio Aluminio Puente Pier Em Aluminio
High Light:

500mm Freeboard Floating Dock Design

,

Yacht Berth Floating Dock Design

,

Aluminium 6061 Floating Pontoon Dock

Aluminum Alloy Floating Dock Marine Yacht Marina Berth Pontoons Dock

There is no longer any need to build massive wooden and cement docks. As a result of its versatile nature, the aluminum alloy structure can be used for rivers, lakes, and seas. A new alternative to a bridge or walkway for transitioning over wetlands and small bodies of water. It's widely applied to various floating structures like marinas, private berths, and lakeside floating bridges. Floating docks are custom-made and can have variable load and float ranges based on project requirements.

Aluminum 6061-T6 marine grade is used primarily for this frame, which is welded together to form a solid support frame, complete with electrically isolated aluminum beams. Exotic precious wood or WPC (Wood Plastic Composite) is used for the floors.

Specification

Freeboard 300mm-600mm Mainly depends on the weight & load & structure design. Being controllable.
Lifespan 20-50 years Should be maintained periodically.
Floating dock specifications (The main part)
Items Details Remarks
Frame Aluminum Alloy Anti-corrosion; Durable; Strong yield strength; Lightweight; Easy to install
Pontoon Box HDPE & EPS Foam

Durable; Anti-corrosion; Anti-UV; Low-temperature toughness;

Light to transport; Easy to maintain & install;

Decking panel Wood Plastic Composite (WPC)

Various colors & sizes; Corrosion resistant; Mothproof;

Low water absorption; Anti-UV; Easy to maintenance

Floating dock specifications (The accessories part)
Items Details Remarks

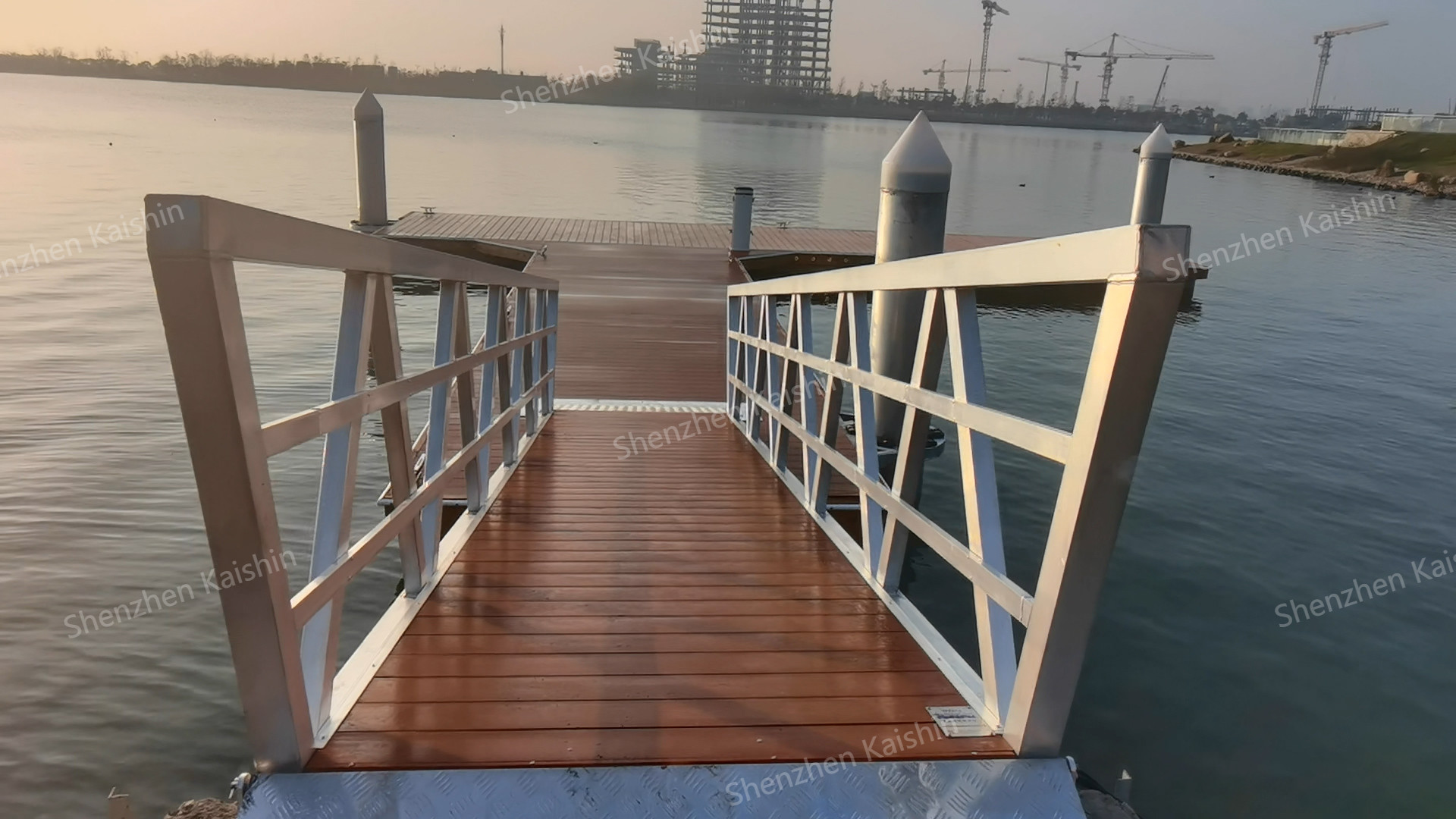

Gangway/ Ramp

Aluminum Alloy Frame,

Handrail, Decking

Strong loading capability; Safe and stable; UV resistant; Long life span;

Low maintenance cost; Flexible movement (with rollers, can adjust according to water level)

Mooring Cleat Stainless Steel / Aluminium cast 2.5T-10T; Durable; Corrosion resistant and sturdy in the saltwater environment
Pile Cap LLDPE Cone UV Resistant; High-Stress Crack Resistance; Maintenance Free; Seamless Design
Pile Guide AISI-316
Nylon roller / Block
Easy operation and maintenance; Durable
Rubber Fender D-shape
Extrusion compound

Strong – No pull through; Protects – Shock Absorbing; Looks Great – No fading;

Easy Install – Nail or screw; Economical – Saves Money

Water and Power Pedestal

Supply electrical & water,

Aluminum material case

Supply electrical & water; Voltage 220V; 16A/32A/ 63A;2x 1/2 Water Tap; LED Lightning
Fire Pedestal

Stainless steel case,

Fire extinguisher, Lifebuoy

Compact design; Tempered Safety Glass; Longer life in outdoor applications;

Sturdy surface resists chipping, peeling, and flaking

Corner Bumper Rubber / PVC

Tough and tear-resistant; Provides maximum cushion; Protection for docks & hulls;

Easily install; WILL NOT mark or mar your hull

Other accessories Bolts&Screws, Rivets, Rubbers, Pads, etc. All connection or fixing fittings for each part are well-designed and durable, especially for the marine environment.

>>>COLLECT INFORMATION

1. Do you have the sketch plan of your project?
2. What kind of usage is for your project?
3. Do you need a Jetslide system?
4. Can we have the photos of the installation site?
5. It Will be installed on:
A lake, A river without current, A weak current river, A medium current river, A strong current river, A sea, An ocean
6. Sea bottom type: Sand, Pebbles, Mud, Rocks
7. Usual height of waves?
8. Do you have ice formation during winter?
9. What is the tidal range?
10. What is the water depth at the beginning and end of the dock?
The information above is very important to us, please kindly write the answer to us so that we can customize your project.

>>>ADVANTAGE

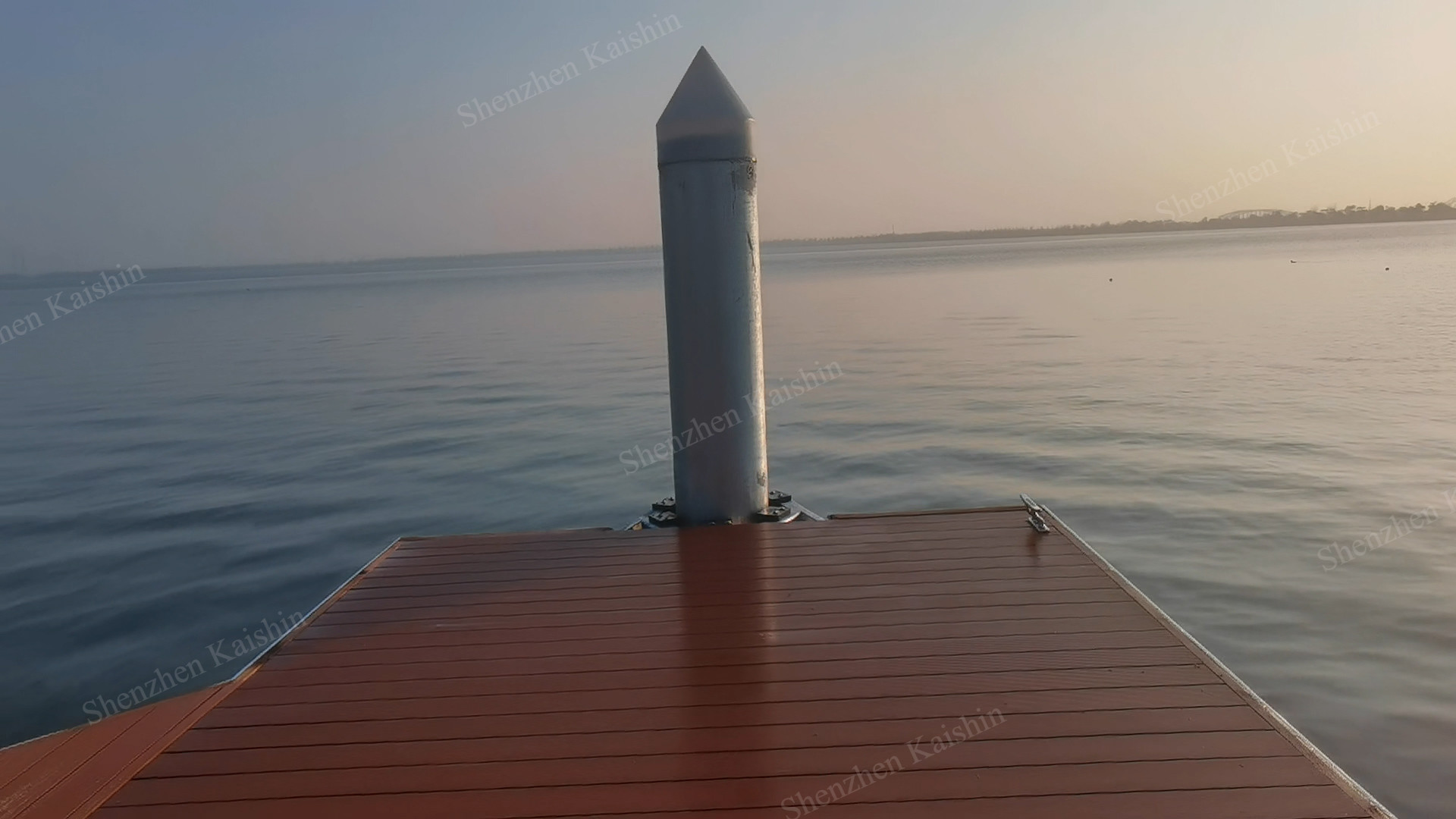

Aluminum Alloy Floating Dock Design Marine Yacht Berth Floating Pontoon Dock 0
Aluminum Alloy Floating Dock Design Marine Yacht Berth Floating Pontoon Dock 1

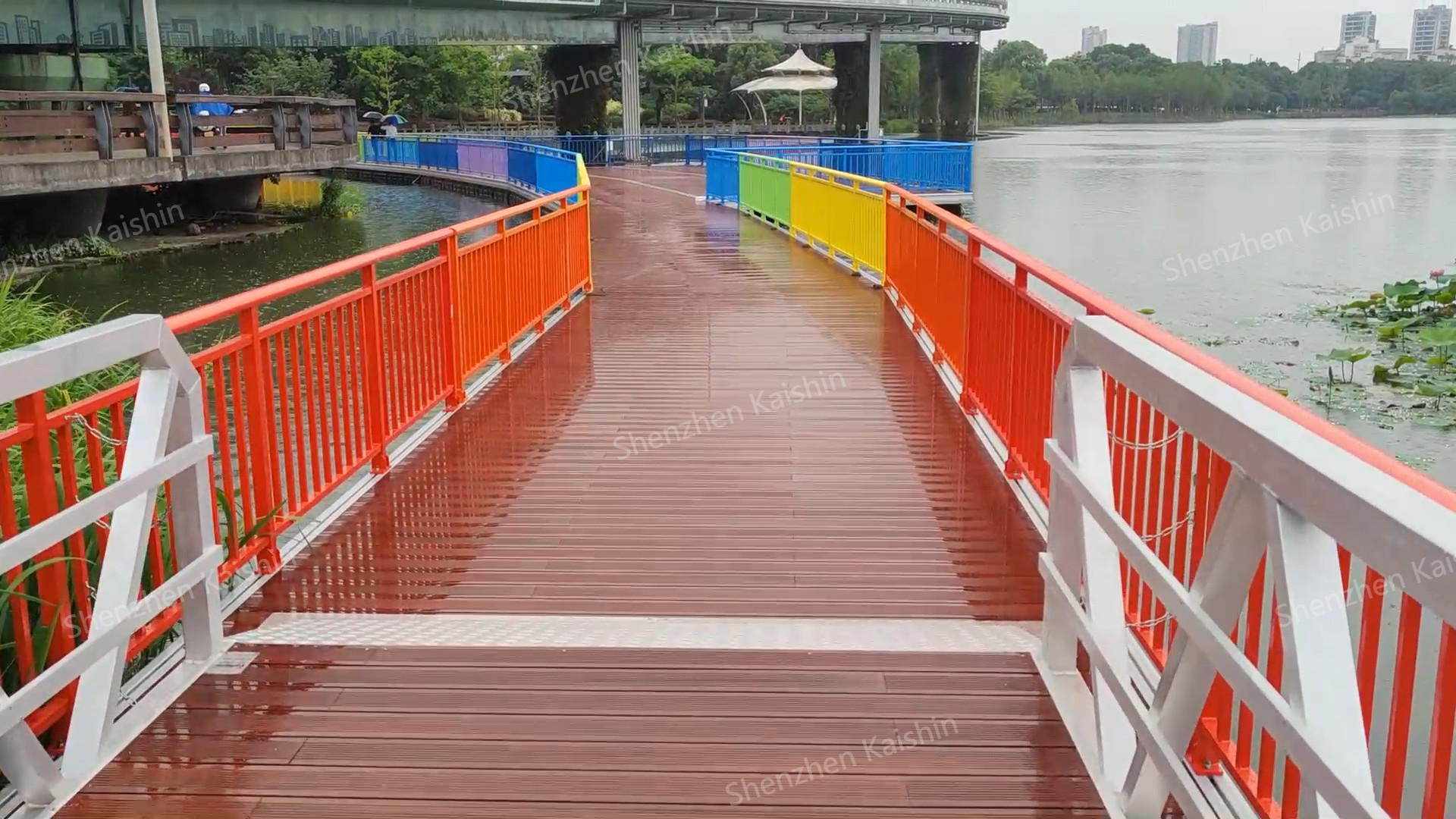

Aluminum Alloy Floating Dock Design Marine Yacht Berth Floating Pontoon Dock 2

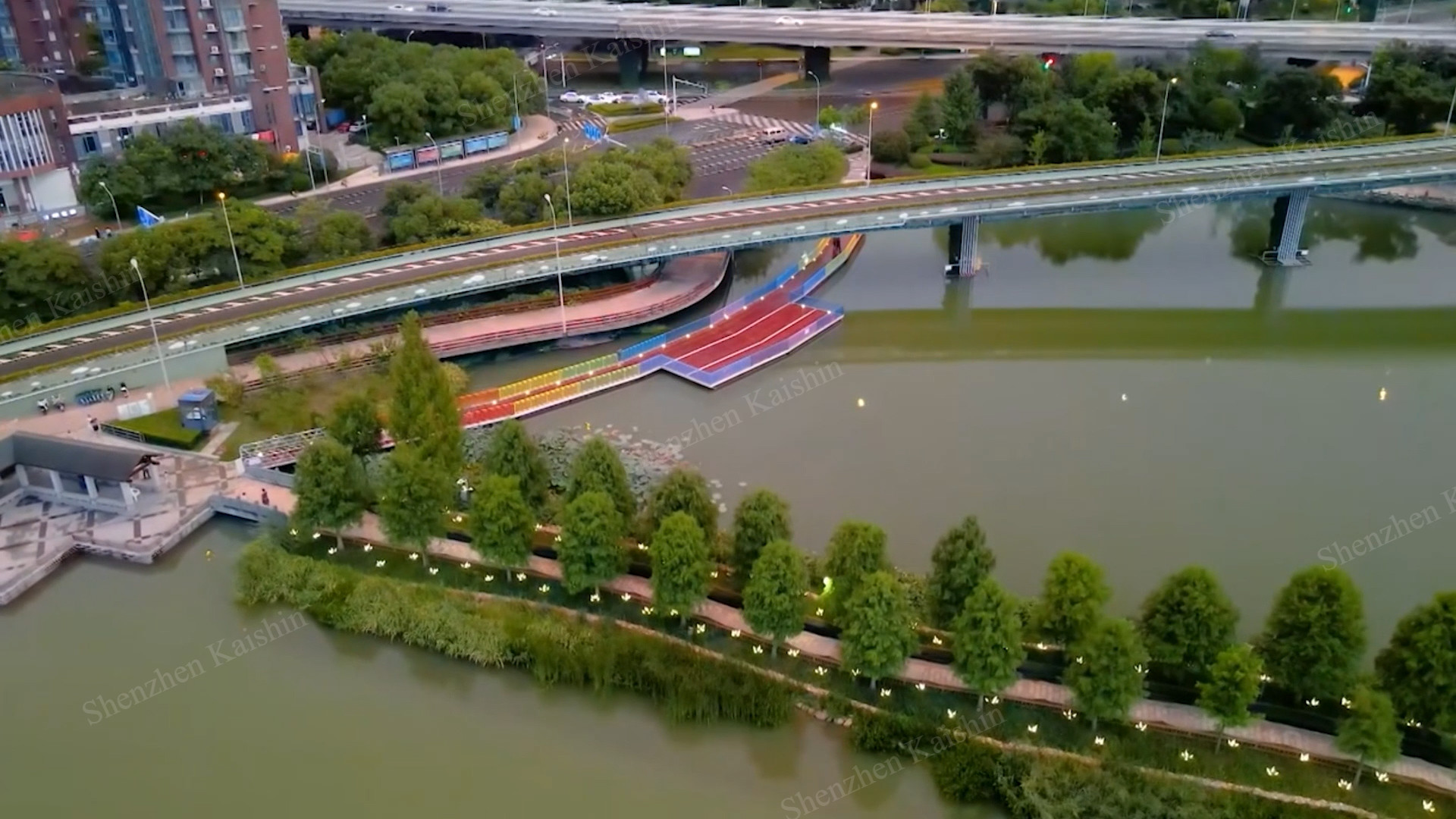

Aluminum Alloy Floating Dock Design Marine Yacht Berth Floating Pontoon Dock 3

Aluminum Alloy Floating Dock Design Marine Yacht Berth Floating Pontoon Dock 4

No. FAQ Answers
1 How do I get an estimate? How do we get started? Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with a quotation.
2 How long does it take to manufacture a full set of the floating dock? All purchases of the floating dock project are built to order, please contact us to check with our sales representative for the current lead time.
3 Is the installation included with the purchase of a floating dock project? No. Installation is not included. However, installation instructions can be provided.
