Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock

Basic Information
Place of Origin: Guangdong, China
Brand Name: Kaishin
Model Number: KS600, KS900,KS1000,KS1200
Minimum Order Quantity: 1square meter
Price: USD200-USD500 per square meter
Packaging Details: As required
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 4000 square meter per month
Material: Marine Grade Aluminium 6061 T6 Range Of Application: Sea, Lake
Size: Customized Freeboard: 500mm
Decking: Wood Plastic Composite Or Exotic Precious Wood Fender: Rubber Fender
Cleat: Aluminium Or Stainless Steel Floats: HDPE+EPS Foam
Type: According To Your Requirement,Aluminium Ceramic Tile Trim Thickness: 0.2mm~15mm Or Customized
Color: Teak/ Rose Red /Rust Red/ Brown/Drak Brown/Black Length: Any Length
Height: Customized Item No: Floating /floating Dock / Aluminium Floating Dock

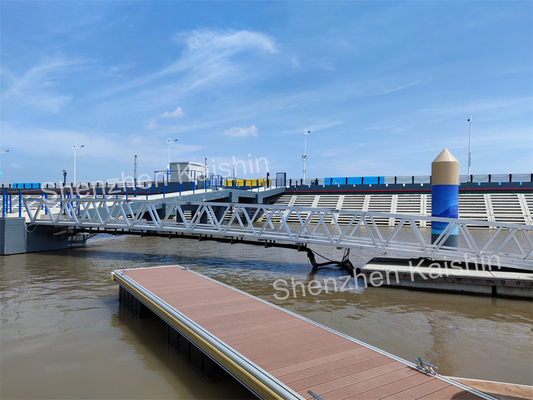

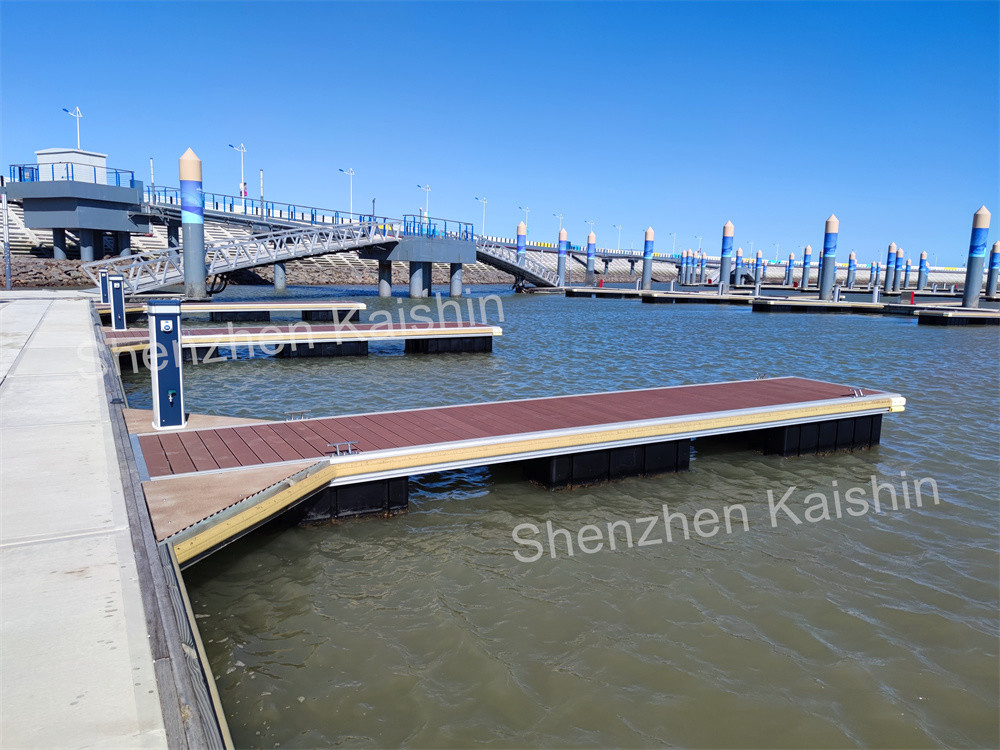

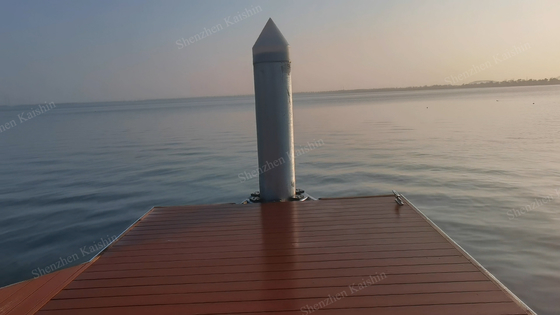

Aluminum Alloy Floating Pontoon Dock For Boat



All our floating docks are custom-made, according to project requirements, and can have variable load and float ranges according to the specific need. The docks can be fitted with electrical or water systems and all accessories for the end users.



The main structure of the frame construction consists of marine grade aluminum 6061-T6, welded together so as to obtain a solid supporting frame, completed by electrically isolated aluminum beams, on which the floors are made of exotic precious wood or WPC (Wood Plastic Composite).



It's widely applied to various floating structures like marinas, private berths, and lakeside floating bridges.

Aluminium Alloy Floating Dock System - Finger
Item No. Length (m) Width (m) Freeboard (mm) Load Standard (kPa) Remarks
KS600 6 1.0
1.2
1.5
1.8
2.0
400-600 2 Custom sizes
are available
as request.
KS800 8
KS1000 10

Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 0

Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 1

>>>ACCESSORIES

We provide a full range of marine industry products, including floating pontoons, finger rails, gangways, pile caps, decking, fenders, mooring cleats, power pedestals, and dock floats.

>>>ADVANTAGE

Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 2

Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 3

1. Do you have the sketch plan of your project? If you have it, please send it to us.

2. What kind of usage is for your project?

Residential, Commerce/industrial, Marina, Pleasure, Aquaculture, Rowing, Event, Special project, Renting, Other.

3. Do you need a Jetslide system?

4. Can we have the photos of the installation site? We need to know the shore type and environment around.

5. It Will be installed on:

A lake, A river without current, A weak current river, A medium current river, A strong current river, A sea, An ocean

6. Sea bottom type:

Sand, Pebbles, Mud, Rocks

7. Usual height of waves?

8. Do you have ice formation during winter?

9. Are you in a tidal area? And what is the tidal range?

10. What is the water depth at the beginning and end of the dock?

The information above is very important for us, please kindly write the answer to us so that we can customize your project.


Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 4

Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 5

Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 6

Aluminum Floating Docks Marine Ship Pile HDPE WPC Decking Floating Pontoon Dock 7

No. FAQ Answers
1 How do I get an estimate? How do we get started? Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with a quotation.
2 How long does it take to manufacture a full set of floating docks? All purchases of the floating dock project are built to order, please contact us to check with our sales representative for the current lead time.
3 Is the installation included with the purchase of a floating dock project? No. Installation is not included. However, installation instructions can be provided.
4 How do I know what type of installation is best for me, on my property? Every situation on every property is slightly different. We can provide a consultation to review your needs according to your local conditions. We would assist you in planning your floating dock project and customizing your dock with a great selection of dock accessories.
