| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Kaishin |
| Model Number: | KS6001 |
| Minimum Order Quantity: | 5 square meter |
| Price: | USD200-USD500 per square meter |
| Packaging Details: | As required |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 4000 square meter per month |
| Material: | Marine Floating Dock | Decking: | Wood Plastic Composite Or Exotic Precious Wood |
|---|---|---|---|
| Fender: | Rubber Fender | Floats: | HDPE+EPS Foam |
| Type: | According To Your Requirement, | Thickness: | 0.2mm~15mm Or Customized |
| Technics: | Wood-Plastic Composite Flooring,Laminate Flooring,PE Materials Flooring | Product Name: | A Floating/ Floating Dock/ Marine Floating Dock |
| Freeboard: | 500mm | Size: | CUSTOM MADE TO ORDER |
| High Light: | Marine Durable Aluminum Floating Dock,Durable Finger Aluminum Floating Dock,waterproof Decking Finger Dock |
||

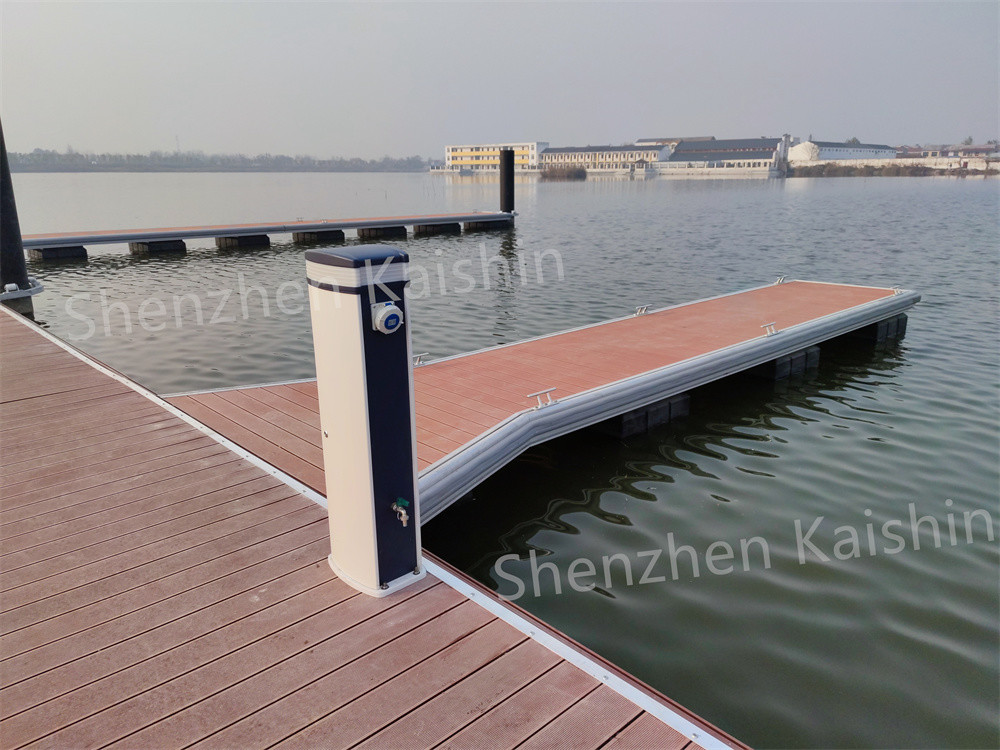

Durability marine floating dock or aluminum marine dock Marine floating bridge pontoon
All our floating docks are custom-made, according to project requirements, and can have variable load and float ranges according to the specific need.
The main structure of the frame construction consists of anti-coronal marine grade aluminum 6061-T6, welded together so as to obtain a solid supporting frame, completed by electrically isolated aluminum beams, on which the floors are made of exotic precious wood or WPC (Wood Plastic Composite).
Specification:
| Aluminum Dock System- Walkway | ||||
| No. | KS600 | KS900 | KS1000 | KS12000 |
| Length(m) | 6.0 | 9.0 | 10.0 | 12.0 |
|
|
2.0 | |||
| 2.5 | ||||
| 3.0 | ||||
| Freeboard(mm) | 400-600 | 400-600 | 400-600 | 400-600 |
| Load Standard | 3.0KPA | 3.0KPA | 3.0KPA | 3.0KPA |
|
PS: Above is our normal specifications, others can be customized according to the client’s specific needs. |
||||
1. Tensile Strength Test is necessary for each batch. Detailed test reports and pictures can be provided after the order is placed.
2. Surface tolerance, zinc finish, and paint finish also be tested according to customers' different requirements.
3. Product' weight is under a reasonable tolerance.
4. Each part's dimension is always according to the technical drawing and international tolerance standard.
5. Harness testing also can be provided if you prefer.
6. Salt spray testing is for customers with the most strict quality control requirement, pls pay attention, this testing needs extra testing charges.
