Aluminum Floating Dock Jetty Finger Floating Pontoon Dock Marina Engineering Design

Basic Information
Place of Origin: China
Brand Name: Kaishin
Certification: SGS
Model Number: FD01
Minimum Order Quantity: 50 Square Meters
Price: USD 300-400 per square meters FOB Shenzhen
Packaging Details: Standard Pakcing
Delivery Time: 50 days
Payment Terms: T/T, Western Union
Supply Ability: 500 Square Meters per 50 days
Application: Floating Pontoon Material: 6061-T6 Aluminium Alloy
Accessories: Bolts, Screws, Bearings Life Span: 20-50 Years
Load Capacity: 300kg/square Meters  Freeboard: 300mm-600mm
High Light:

T6 Aluminium Floating Dock Jetty


Finger Floating Dock Jetty


Marina Floating Pontoon Dock

What is a floating dock?
A floating dock is just what it says. A floating dock is not fixed at a certain height or level. This dock type has several advantages over a fixed dock. Whatever your reason, floating dock systems are the smart choice. They're safer, easier to install and remove, and will last longer than traditional docks. Floating docks save you time and money. Not to mention they’ll keep you and your property safe during unexpected situations.

Generally speaking, a floating dock system consists of a gangway (ramp), walkway, finger, decking, pile, pontoon, and other dock accessories.

All our floating docks are custom-made, according to project requirements, and can have variable load and float ranges according to the specific need. The docks can be fitted with electrical or water systems and all accessories for the end users.

The main structure of the frame construction consists of marine grade aluminum 6061-T6, welded together so as to obtain a solid supporting frame, completed by electrically isolated aluminum beams, on which the floors are made of exotic precious wood or WPC (Wood Plastic Composite).

It's widely applied to various floating structures like marinas, private berths, and lakeside floating bridges.

 Freeboard  300mm-600mm  Mainly depends on the weight & load & structure design. Being controllable.
 Lifespan  20-50 years  Should be maintained periodically.
Floating dock specifications (The main part)
 Items  Details  Remarks
 Frame  Aluminum Alloy  Anti-corrosion; Durable; Strong yield strength; Lightweight; Easy to install
 Pontoon Box  HDPE & EPS Foam

 Durable; Anti-corrosion; Anti-UV; Low-temperature toughness;

 Light to transport; Easy to maintain & install;

 Decking panel  Wood Plastic Composite (WPC)

 Various colors & sizes; Corrosion resistant; Mothproof;

 Low water absorption; Anti-UV; Easy to maintenance

Floating dock specifications (The accessories part)
 Items Details  Remarks
 Gangway/ Ramp

 Aluminum Alloy Frame,

 Handrail, Decking

 Strong loading capability; Safe and stable; UV resistant; Long life span;

 Low maintenance cost; Flexible movement (with rollers, can adjust according to water level)

 Mooring Cleat  Stainless Steel / Aluminium cast  2.5T-10T; Durable; Corrosion resistant and sturdy in the saltwater environment
 Pile Cap  LLDPE Cone  UV Resistant; High-Stress Crack Resistance; Maintenance Free; Seamless Design
 Pile Guide  AISI-316
 Nylon roller / Block
 Easy operation and maintenance; Durable
 Rubber Fender  D-shape
 Extrusion compound

 Strong – No pull through; Protects – Shock Absorbing; Looks Great – No fading;

 Easy Install – Nail or screw; Economical – Saves Money

 Water and Power Pedestal

 Supply electrical & water,

 Aluminum material case

 Supply electrical & water; Voltage 220V; 16A/32A/ 63A;2x 1/2 Water Tap; LED Lightning
 Fire Pedestal

 Stainless steel case,

 Fire extinguisher, Lifebuoy

 Compact design; Tempered Safety Glass; Longer life in outdoor applications;

 Sturdy surface resists chipping, peeling, and flaking

 Corner Bumper  Rubber / PVC

 Tough and tear-resistant; Provides maximum cushion; Protection for docks & hulls;

 Easily install; WILL NOT mark or mar your hull

 Other accessories  Bolts&Screws,Rivet,Rubber Pad,etc.  All connection or fixing fittings for each part are well-designed and durable, especially for the marine environment.


1. Do you have the sketch plan of your project? If you have it, please send it to us.
2. What kind of usage is for your project?
Residential, Commerce/industrial, Marina, Pleasure, Aquaculture, Rowing, Event, Special project, Renting, Other.
3. Do you need a Jetslide system?
4. Can we have the photos of the installation site? We need to know the shore around the type and environment.
5. It Will be installed on:
A lake, A river without current, A weak current river, A medium current river, A strong current river, A sea, An ocean
6. Sea bottom type: Sand, Pebbles, Mud, Rocks
7. Usual height of waves?
8. Do you have ice formation during winter?
9. Are you in a tidal area? And what is the tidal range?
10. What is the water depth at the beginning and end of the dock?
The information above is very important to us, please kindly write the answer to us so that we can customize your project.

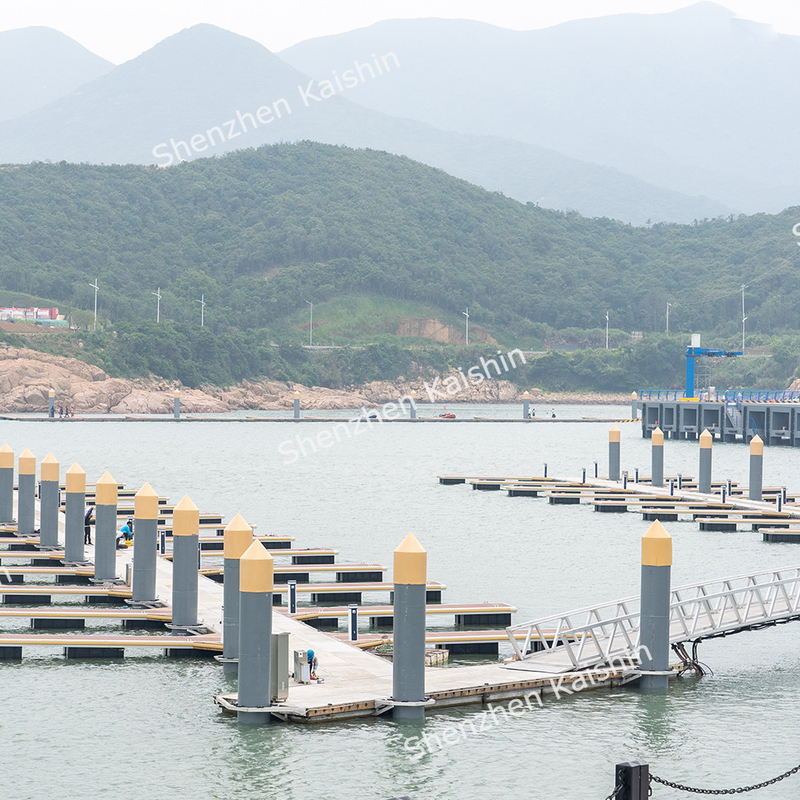

Aluminum Floating Dock Jetty Finger Floating Pontoon Dock Marina Engineering Design 0

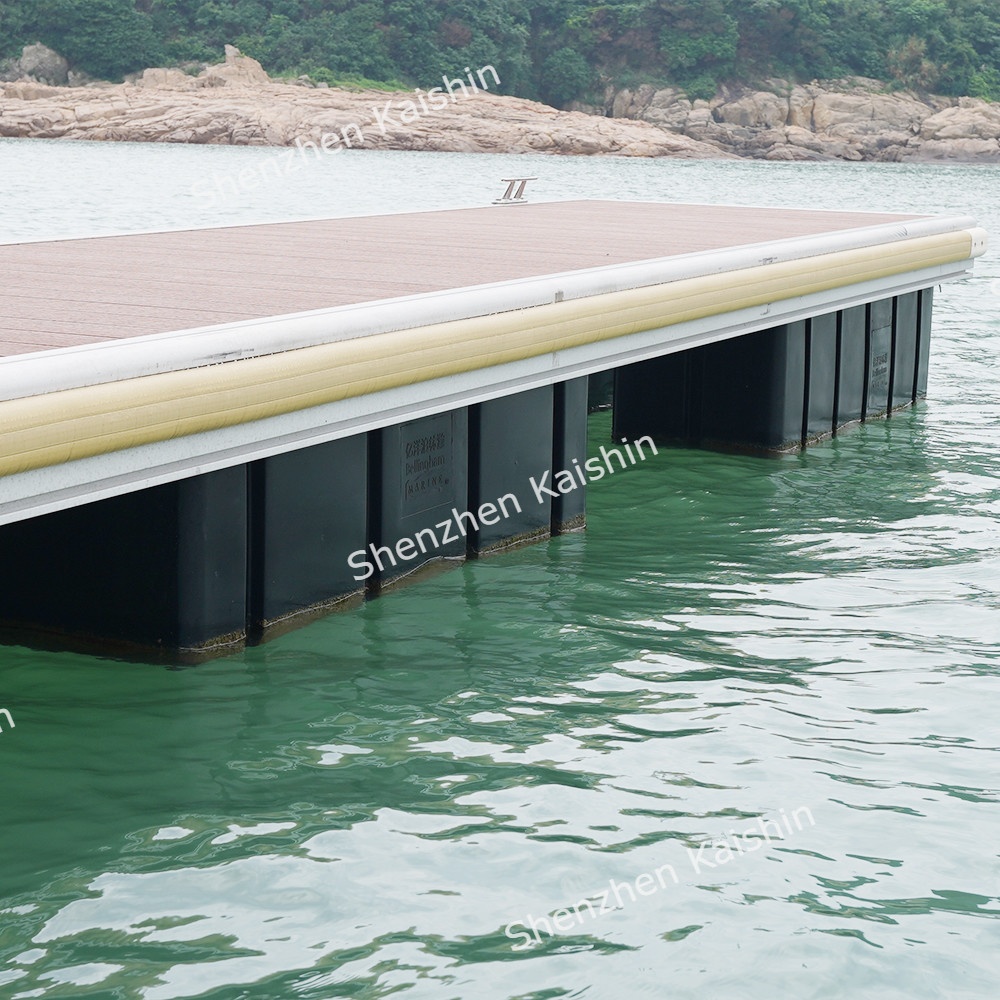

Aluminum Floating Dock Jetty Finger Floating Pontoon Dock Marina Engineering Design 1


1. How do I get an estimate? How do we get started?

    Please kindly send us an online quote request providing us with the drawing and details available, we are able to get back to you with a quotation.

2. How long does it take to manufacture a full set of floating docks?

    All purchases of floating dock projects are built to order, please contact us to check with our sales representative for the current lead time.

3. Is the installation included with the purchase of a floating dock project?

    No. Installation is not included. However, installation instructions can be provided.

4. How do I know what type of installation is best for me, on my property?

    Every situation on every property is slightly different. We can provide a consultation to review your needs according to your local conditions. We would assist you in planning your floating dock project and customizing your dock with a great selection of dock accessories.

5. Can my floating docks be customized to a different size or configuration?

   Sure! Since all of our floating docks are built to order, so they can be customized to fit your needs.
