| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Kaishin |
| Model Number: | KS600, KS900,KS1000,KS1200 |
| Minimum Order Quantity: | 1square meter |
| Price: | USD200-USD480 per square meter |
| Packaging Details: | As required |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 4000 square meter per month |
| Material: | Marine Grade Aluminium 6061 T6 | Width: | 2000mm / 2400mm / 3000mm |
|---|---|---|---|
| Range Of Application: | Sea, Lake, Jetty, River, Creek, Ocean | Flooring Accessories Type: | Pedestal, Cleats, Rubber Fender |
| Type: | Flooring Accessories | Item No: | Floating /floating Dock / Aluminium Floating Dock |
| Application: | Floor, Garden, UV Board | Product Name: | High Quality Floating Pontoon And Aluminum Floating Dock For Yacht |
| Highlight: | Custom sizes Jet Ski Pontoon Dock,yacht club Jet Ski Pontoon Dock,yacht club Aluminium Floating Pontoon |
||

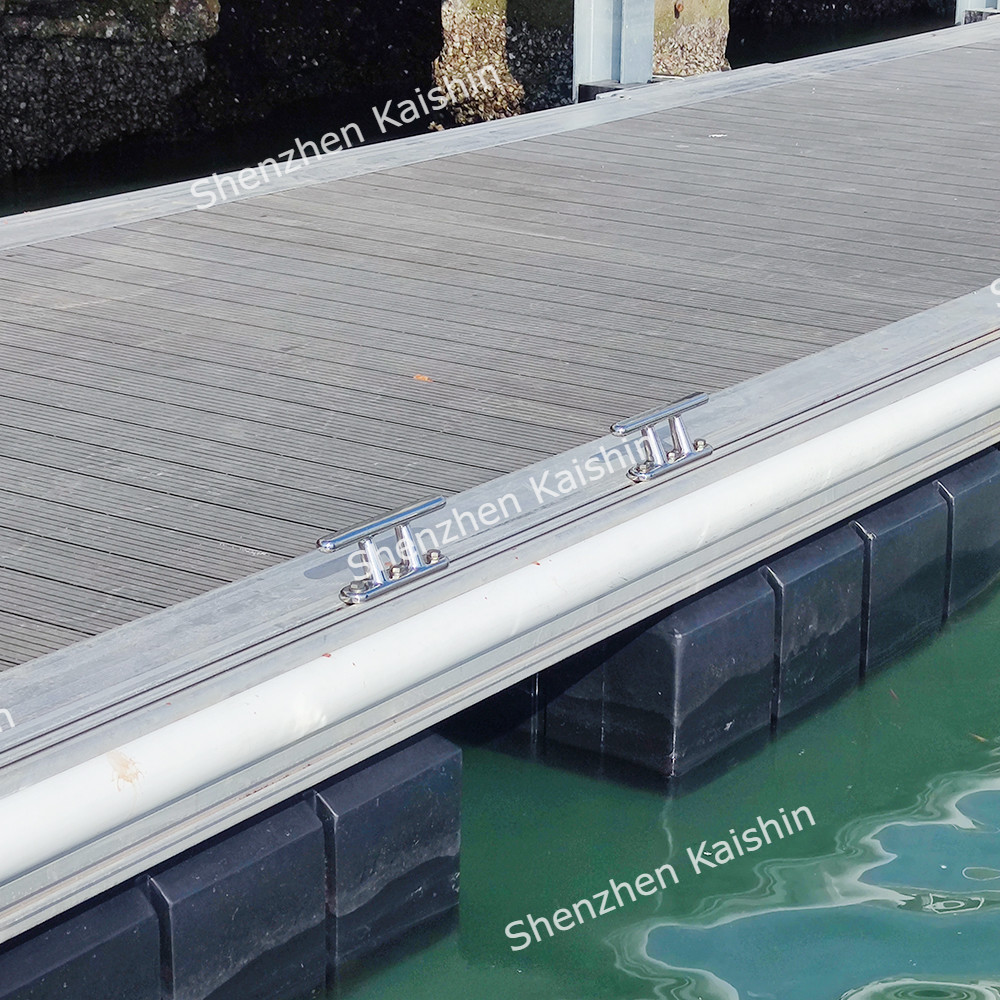

All our floating docks are custom-made, according to project requirements, and can have variable load and float ranges according to the specific need. The docks can be fitted with electrical or water systems and all accessories for the end users.
The main structure of the frame construction consists of anti-coronal marine grade aluminum 6061-T6, welded together so as to obtain a solid supporting frame, completed by electrically isolated aluminum beams, on which the floors are made of exotic precious wood or WPC (Wood Plastic Composite).
>>>SPECIFICATION:
| Aluminium Alloy Floating Dock System - Walkway | |||||
| Item No. | Length (m) | Width (m) | Freeboard (mm) | Load Standard (kPa) | Remarks |
| KS600 | 6 | 2 2.5 3.0 |
400-600 | 2.5 | Custom sizes are available as request. |
| KS900 | 9 | ||||
| KS1000 | 10 | ||||
| Aluminium Alloy Floating Dock System - Finger | |||||
| Item No. | Length (m) | Width (m) | Freeboard (mm) | Load Standard (kPa) | Remarks |
| KS600 | 6 | 1.0 1.2 1.5 1.8 2.0 |
400-600 | 2 | Custom sizes are available as request. |
| KS800 | 8 | ||||
| KS1000 | 10 | ||||
| Aluminium Alloy Gangway | |||||
| Item No. | Length (m) | Width (m) | Load Standard (kPa) | Remarks | |
| KS600 | 6 | 1.2 1.5 2.0 2.5 3.0 |
2.5 | Custom sizes are available as request. |
|
| KS800 | 8 | ||||
| KS1000 | 10 | ||||
>>>ADVANTAGE:
>>>OUR COMPANY
Our product line covers the marine industry chain, from floating pontoons to accessories, like a walkway, finger, gangway, pile cap, decking, fender, mooring cleat, power pedestal, dock float, etc.
With experience and know-how in the floating dock industry, Shenzhen Kaishin is your one-stop shop for all your floating system needs, no matter commercial floating dock projects or private berth needs.
>>>OUR FACTORY
>>>QUALITY CONTROL
1. Tensile Strength Test is necessary for each batch. Detailed test reports and pictures can be provided after the order is placed.
2. Surface tolerance, zinc finish, and paint finish also be tested according to customers' different requirements.
3. Product' weight is under a reasonable tolerance.
4. Each part's dimension is always according to the technical drawing and international tolerance standard.
